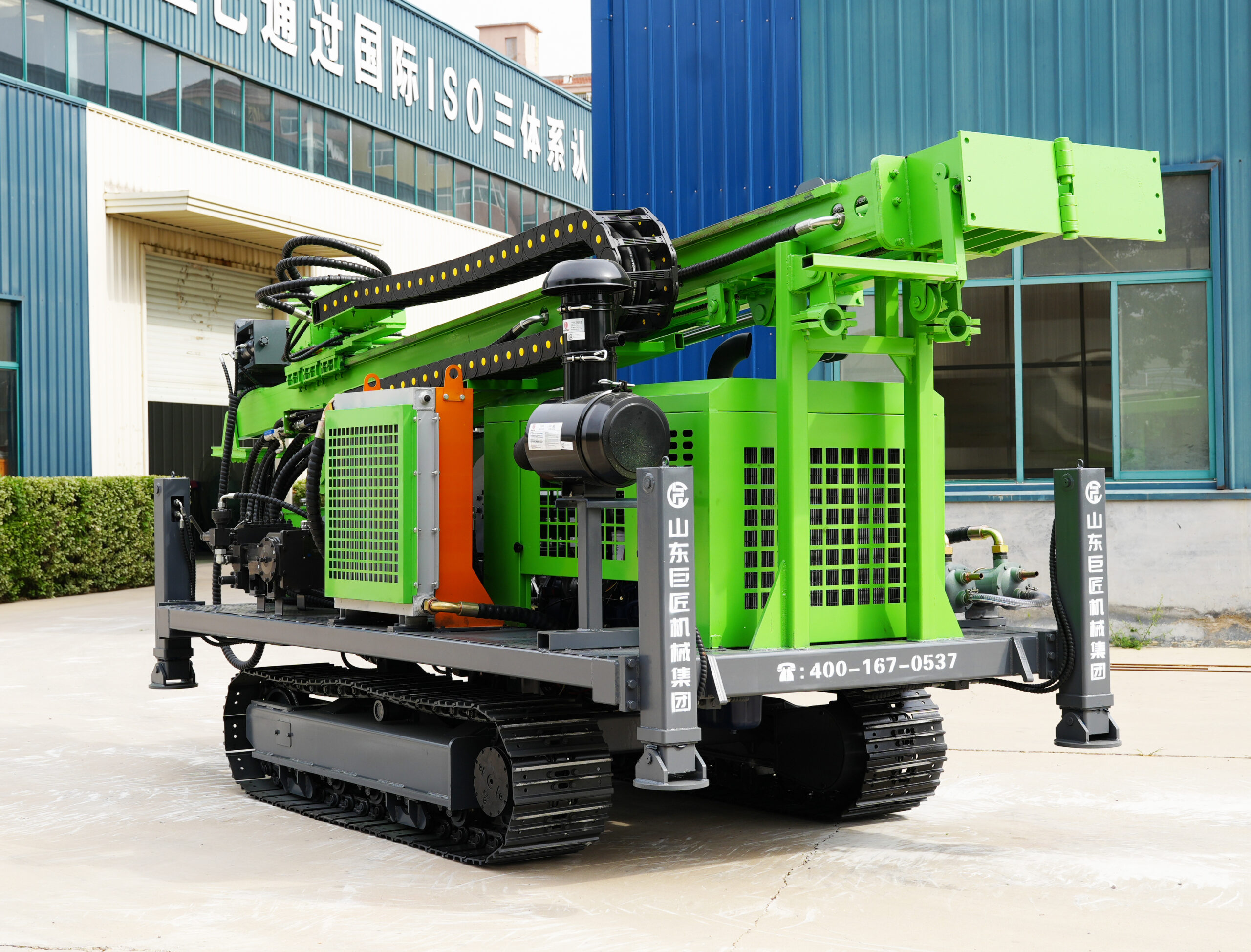

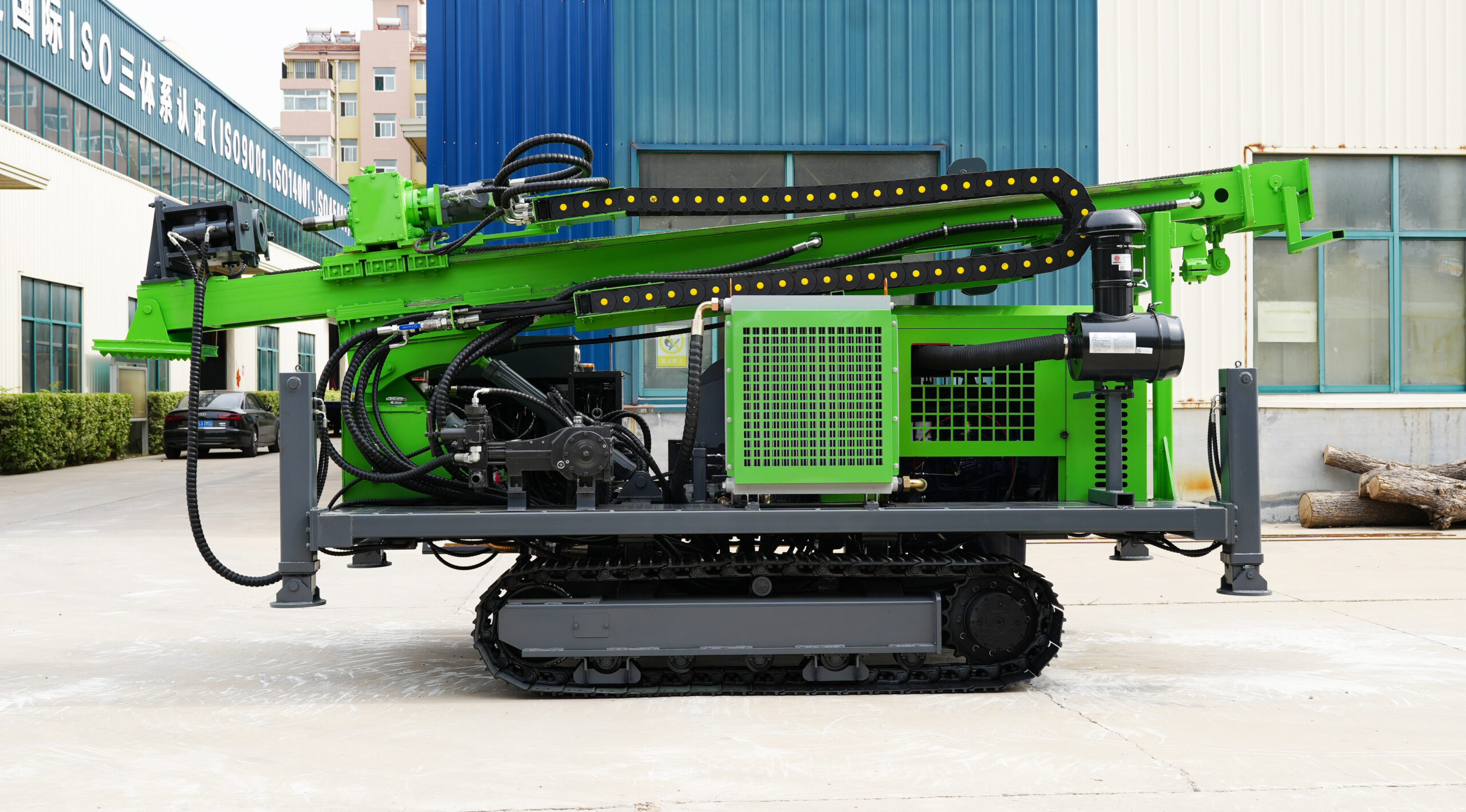

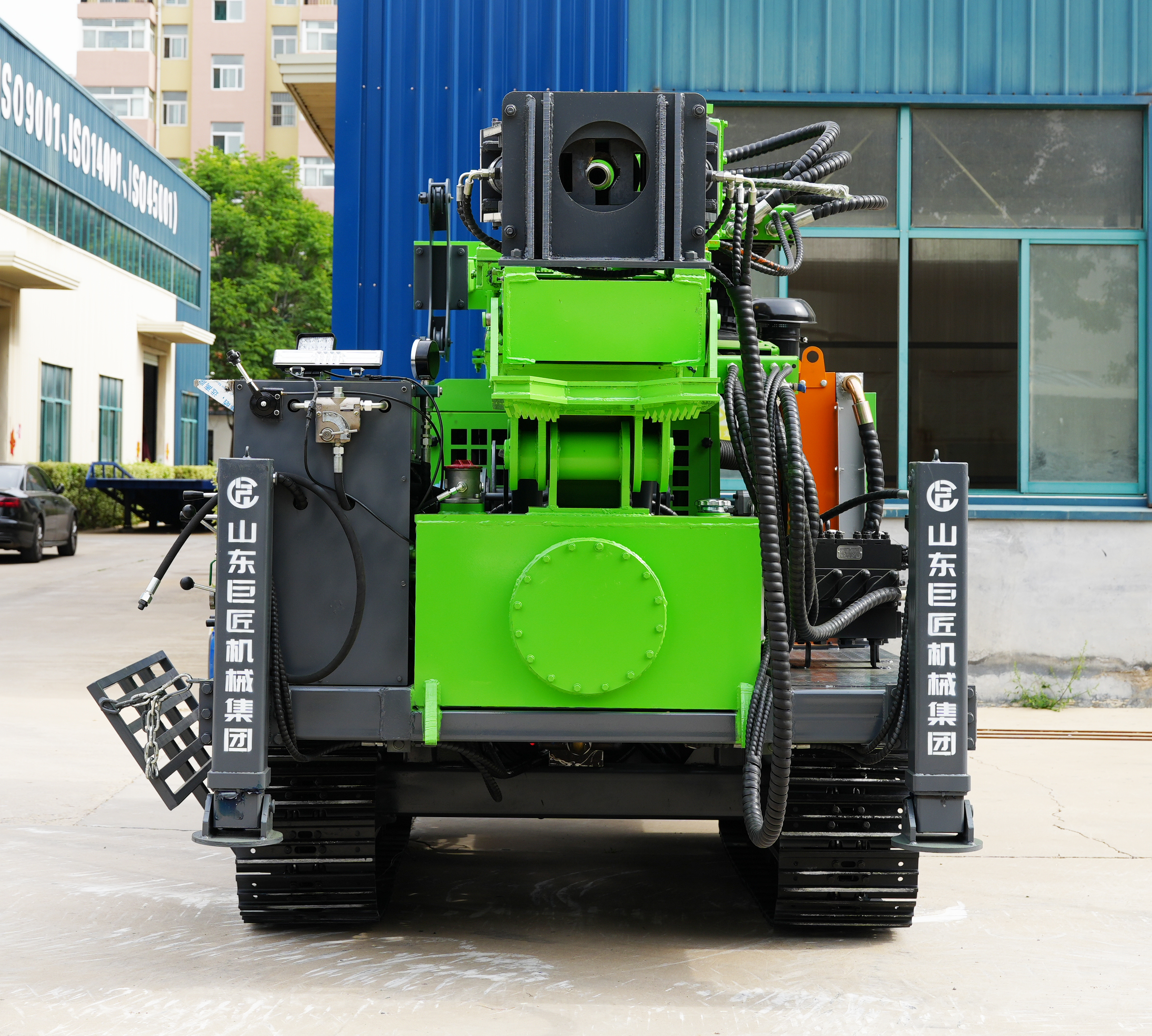

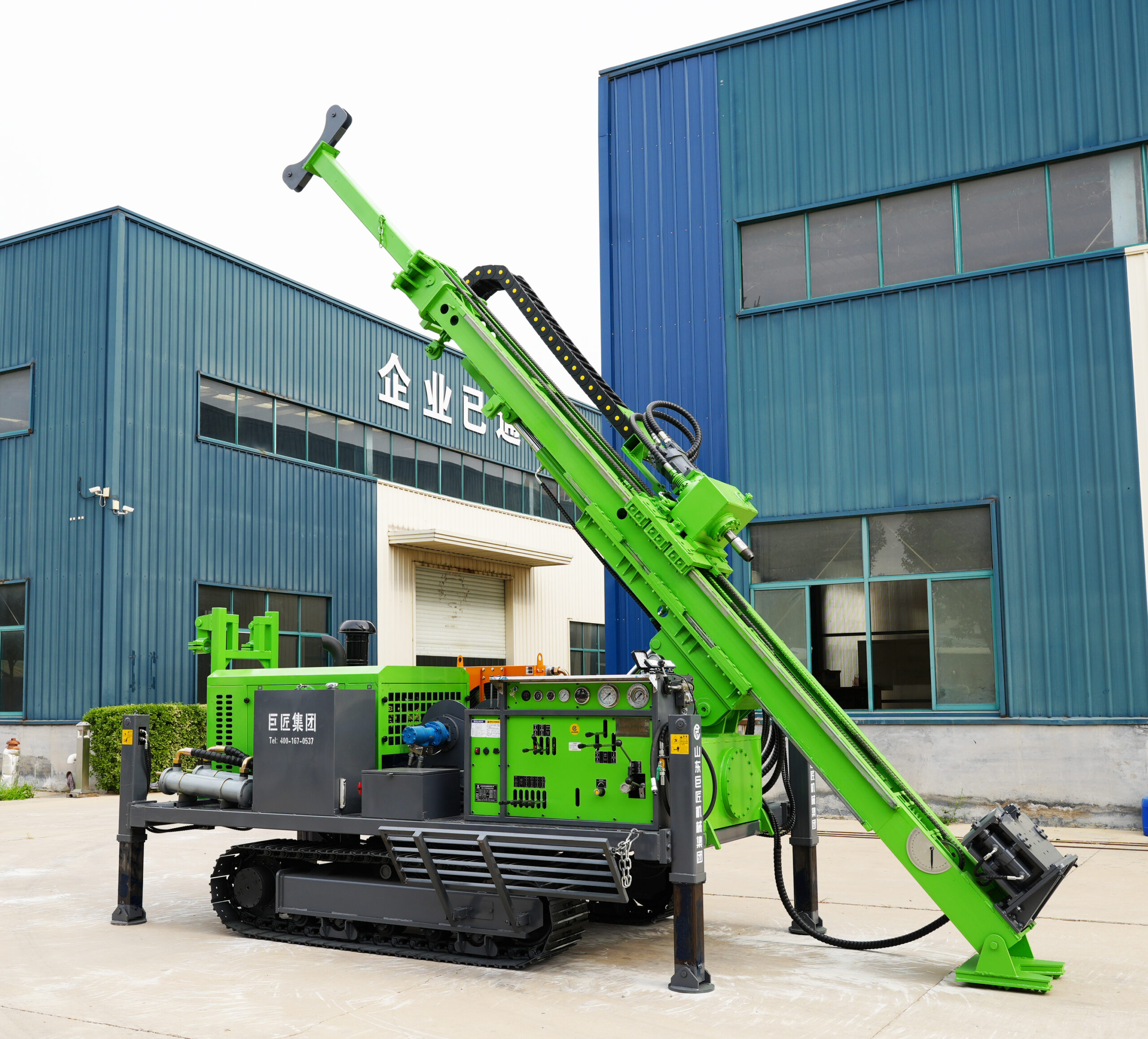

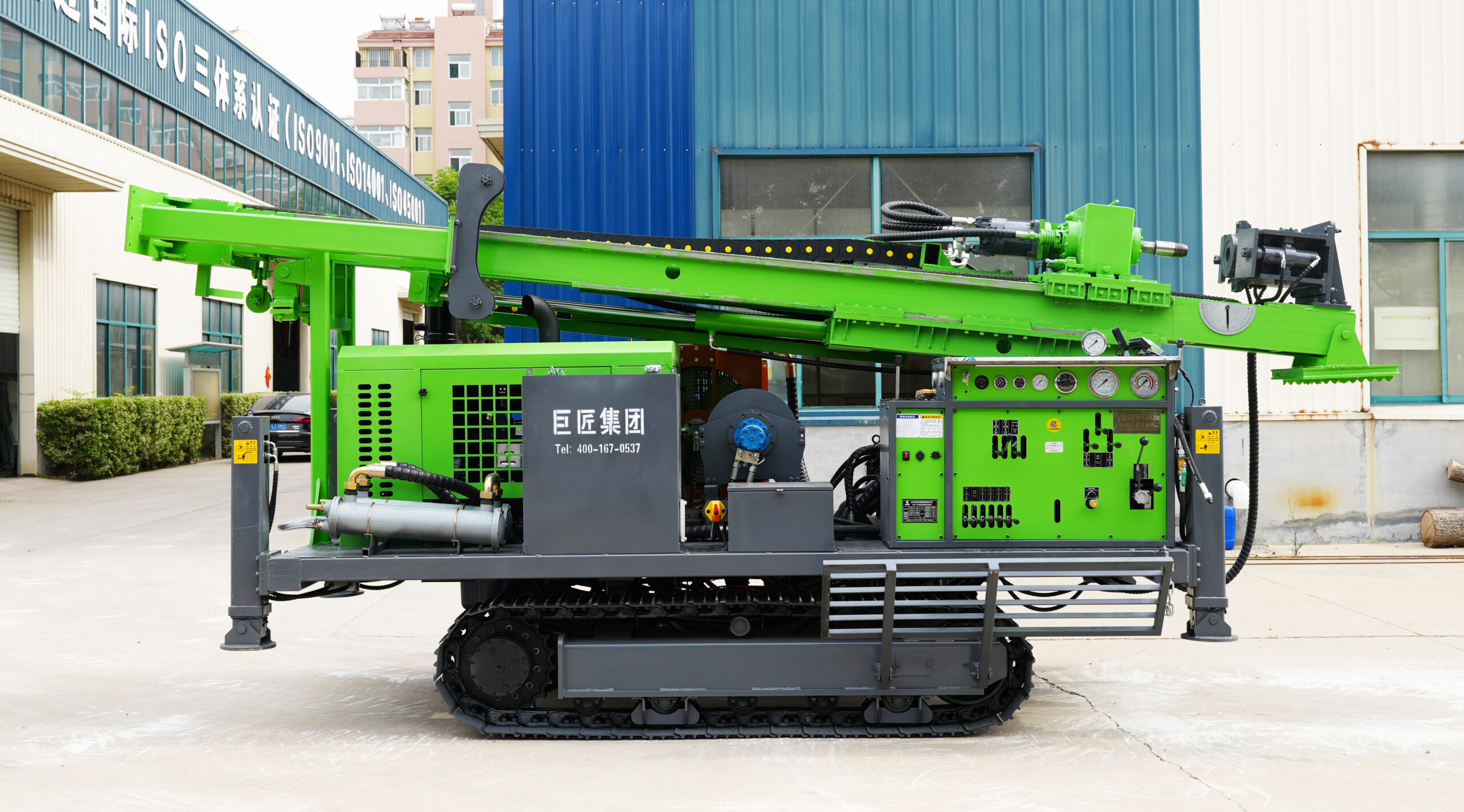

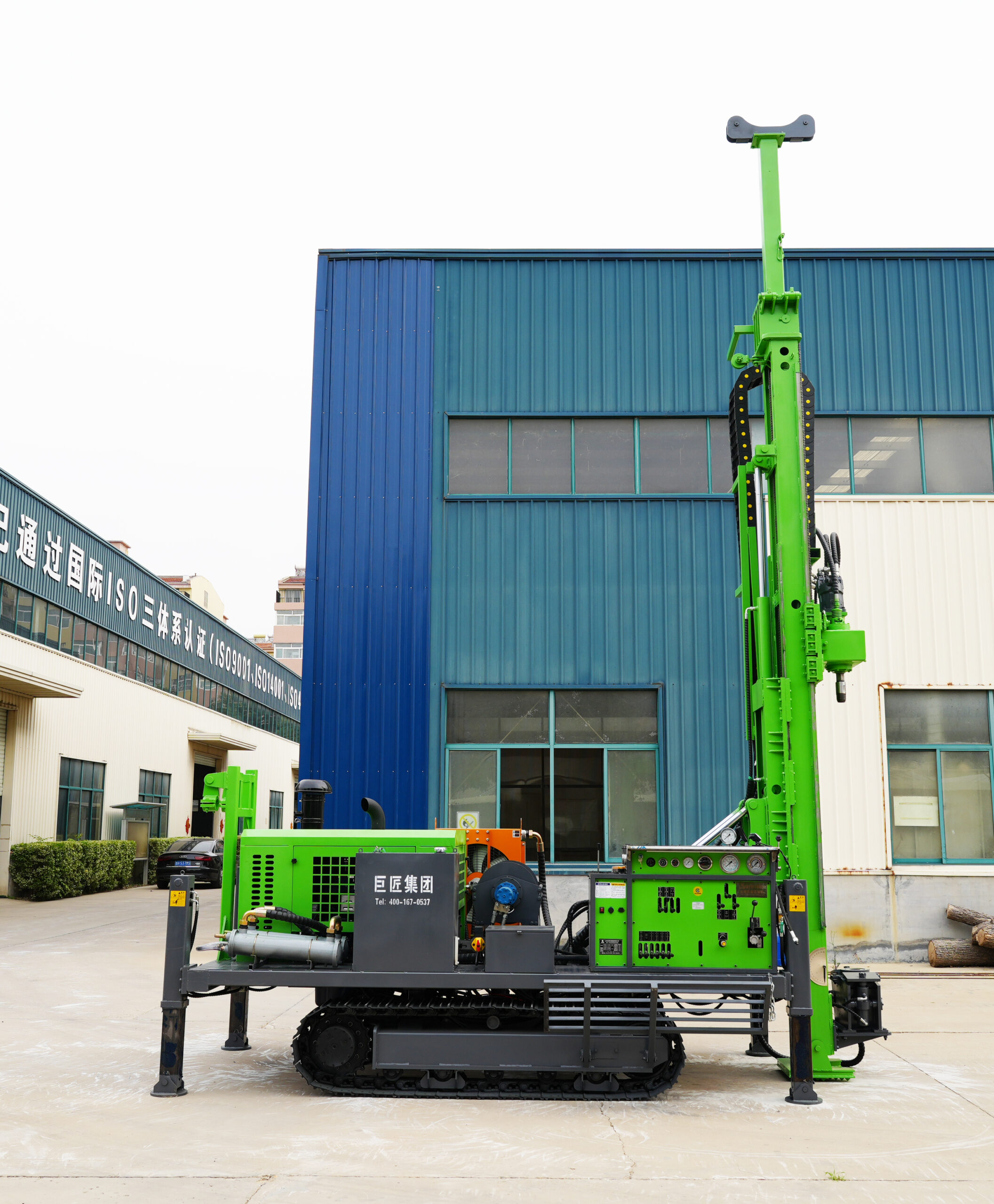

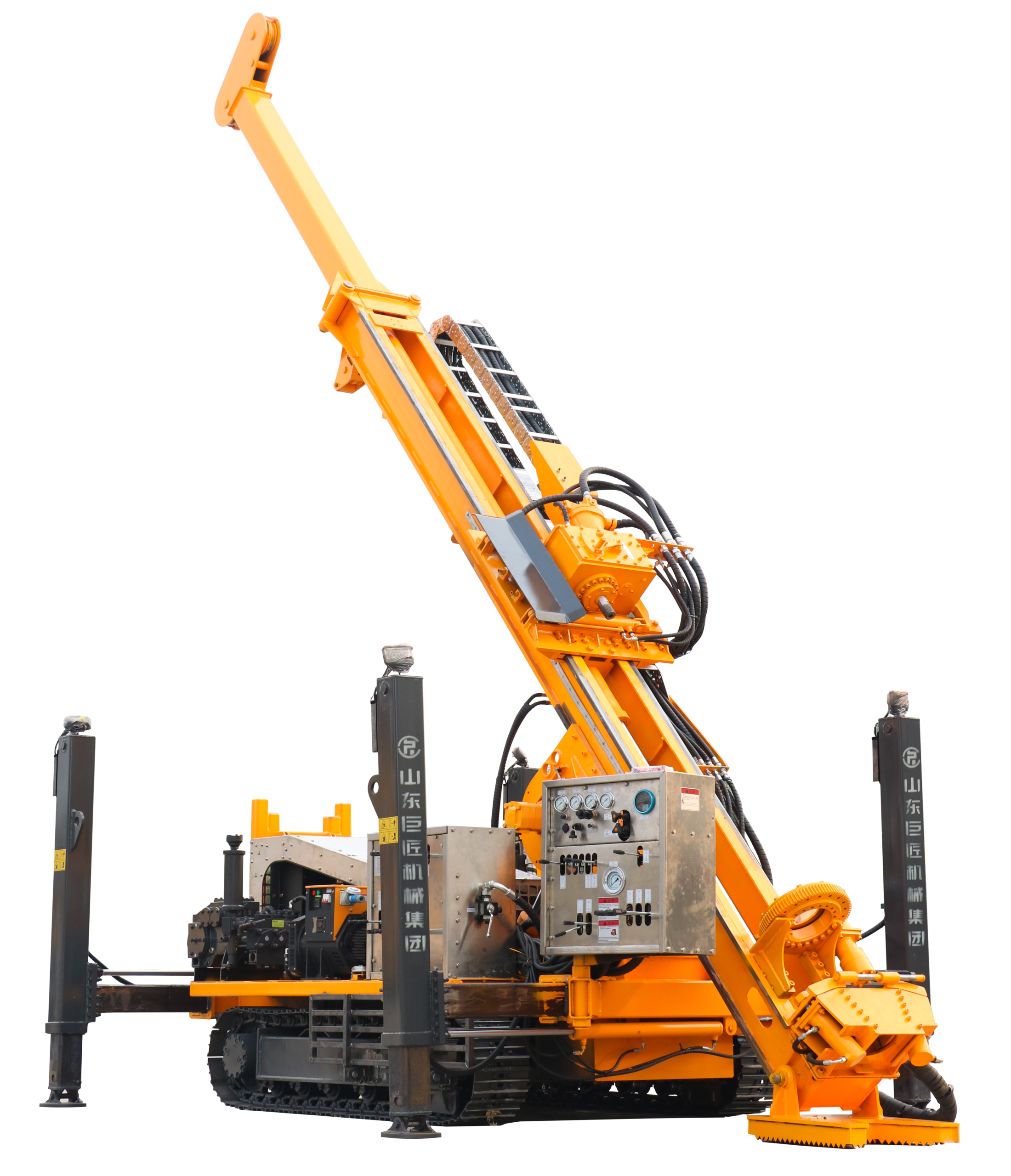

QYD-1000 Fully Hydraulic Core Exploration Drilling Rig

• QYD-1000 Fully Hydraulic Core Exploration Drilling Rig

1.Introduction to QYD-1000 Crawler Fully Hydraulic Core Drilling Rig

QYD-1000 crawler fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting.

2.Features of QYD-1000 Crawler Fully Hydraulic Core Drilling Rig

2.1 Equipped with a wireless remote control, the drilling rig can be remotely controlled to prevent sudden dangers.

2.2 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque.

2.3 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus stepless speed regulation, advanced structure.

2.4 Adopts cylinder chain double speed feeding mechanism, stable and reliable movement, and with power head side translation mechanism.

2.5 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly.

2.6 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools.

2.7 The rig adopts the touchdown base for touchdown fixation, making drilling more stable.

2.8 The use of air cooling and water cooling, more diversified way, can ensure the long time operation of the machine.

3.Parameters of QYD-1000 Crawler Fully Hydraulic Core Drilling Rig

Drilling rig model		QYD-1000
Drilling capacity	BTW	1400m
	NTW	1200m
	HTW	1000m
	PQ	800m
Hydraulic system	Rated pressure	32+16 Mpa
	cooling mode	Secondary air cooling First level water cooling
Engine	Engine type	Weichai six cylinder
	Rated power	129kW
Power head	Maximum torque	2600N.m
	Maximum rotate speed	1400rpm
	Feeding stroke	3.5m
	Lifting force	360kN
	Propulsion force	180kN
Wire-line coring winch	Rope capacity	1200m
	Lifting force	24kN
	Lifting speed	110m/min
Touchdown integrated drill tower	Full height	7.9m
	Drilling angle	0-90°
	Slip stroke	1200mm
Crawler chassis	Walking mode	Manual + remote control
Transport size	L*W*H	5.6m*2.2m*3.0m
Whole machine weight		7.3T

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
