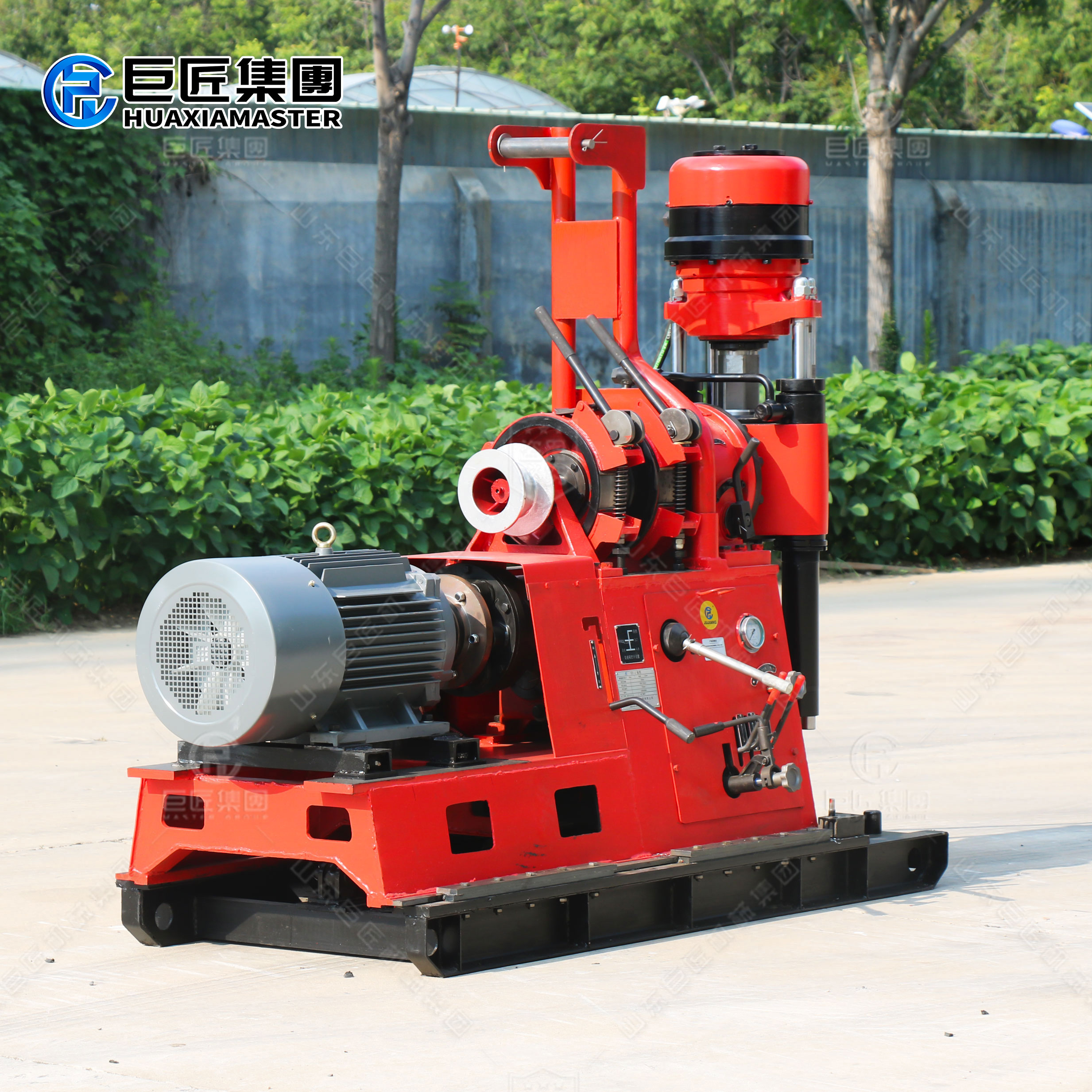

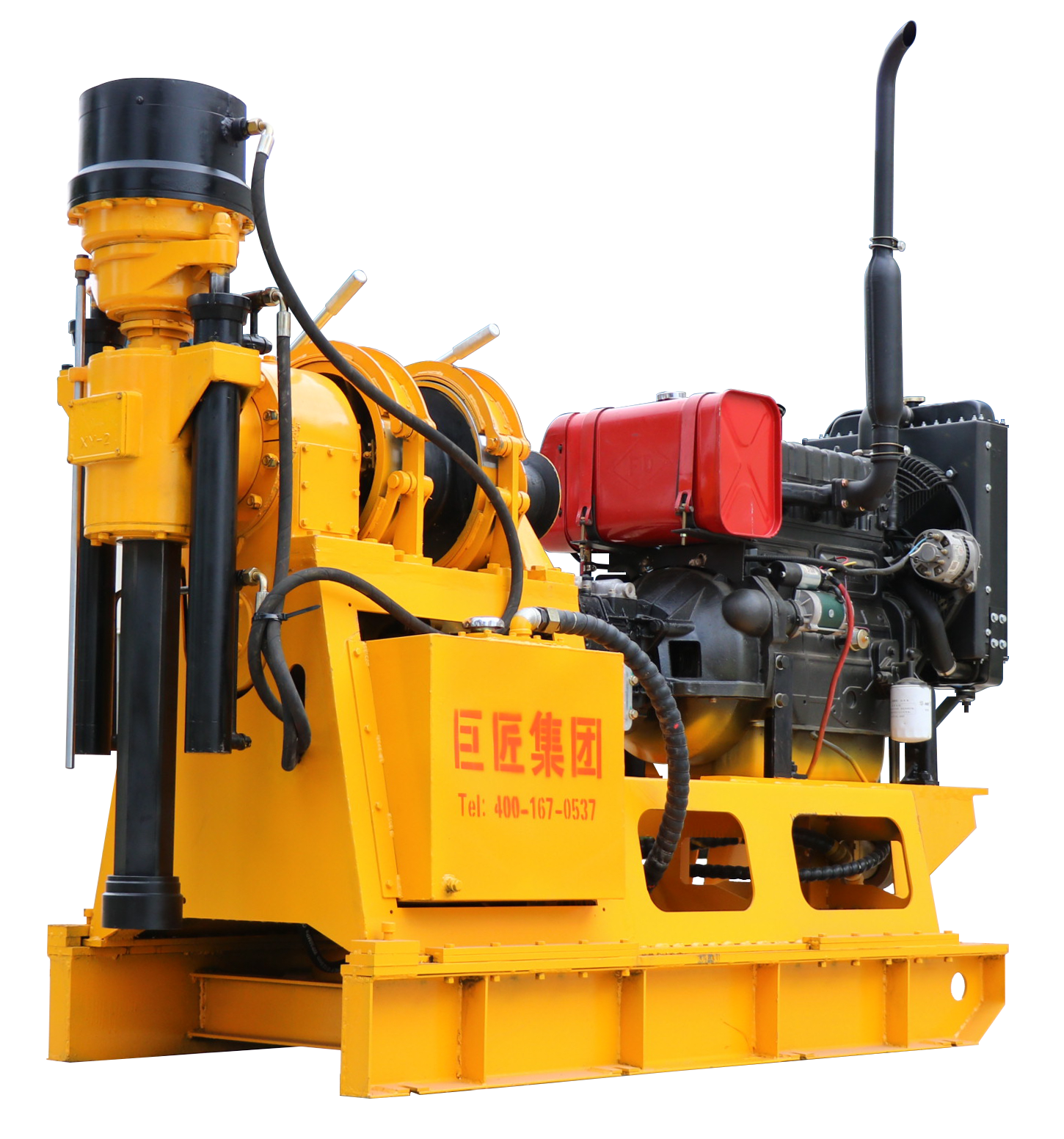

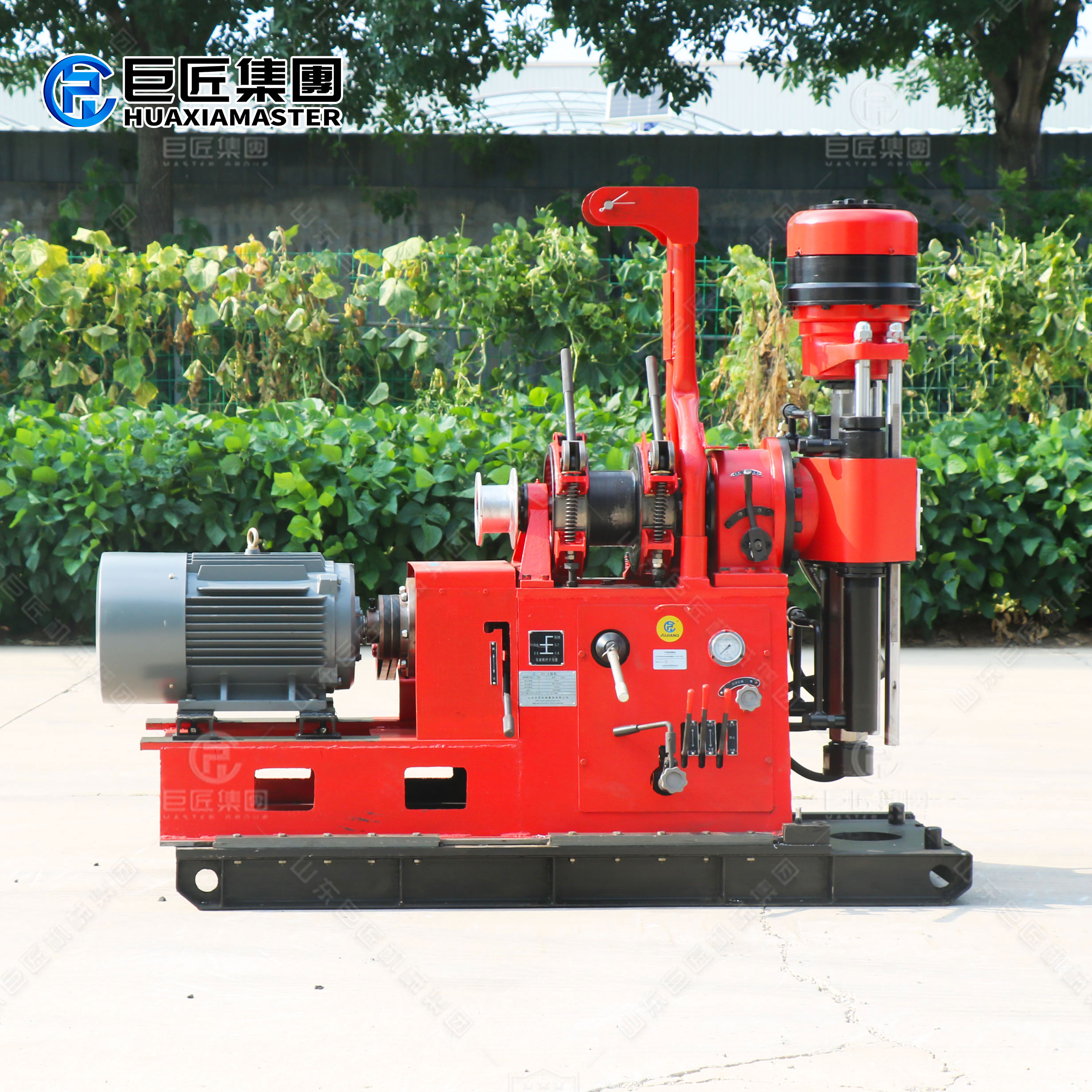

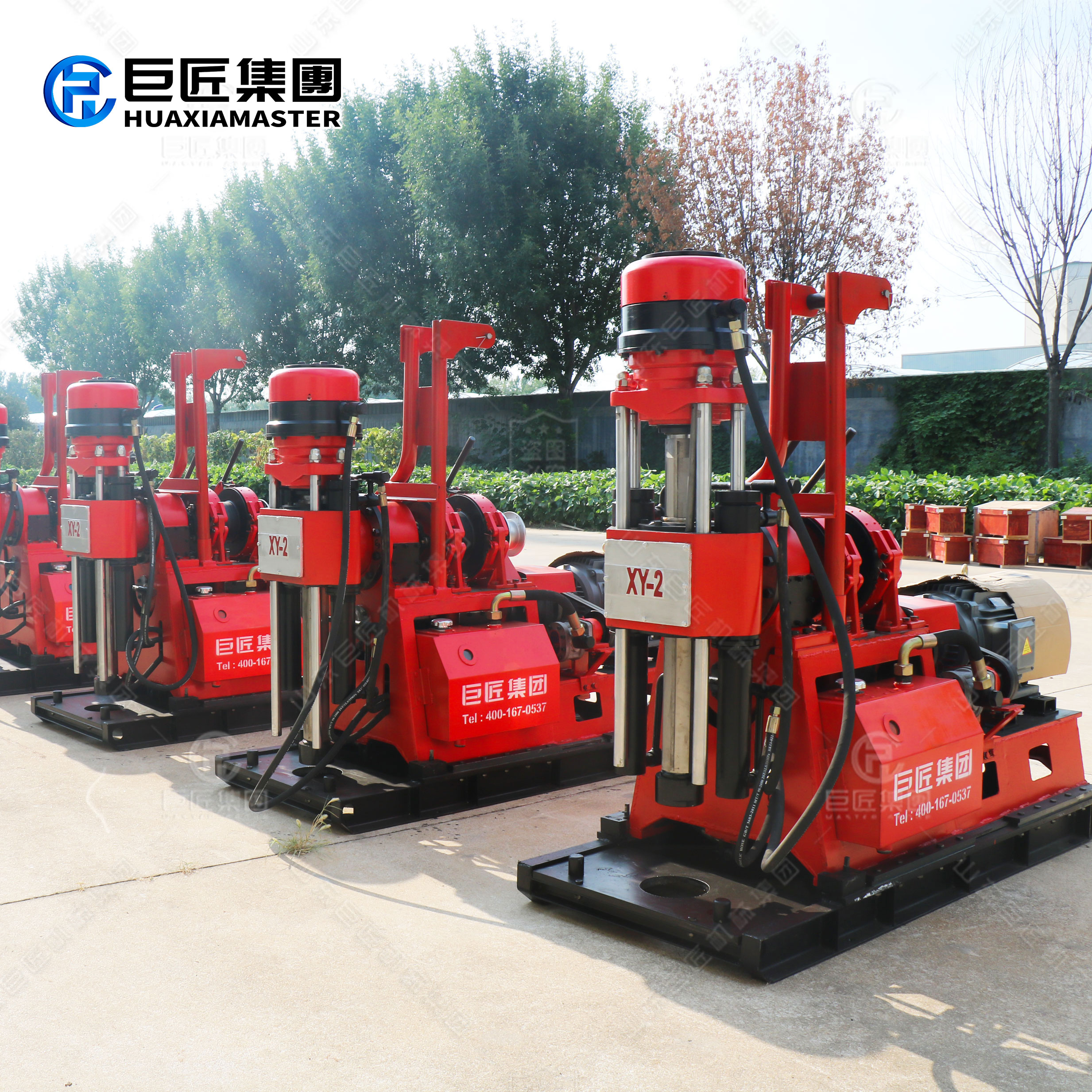

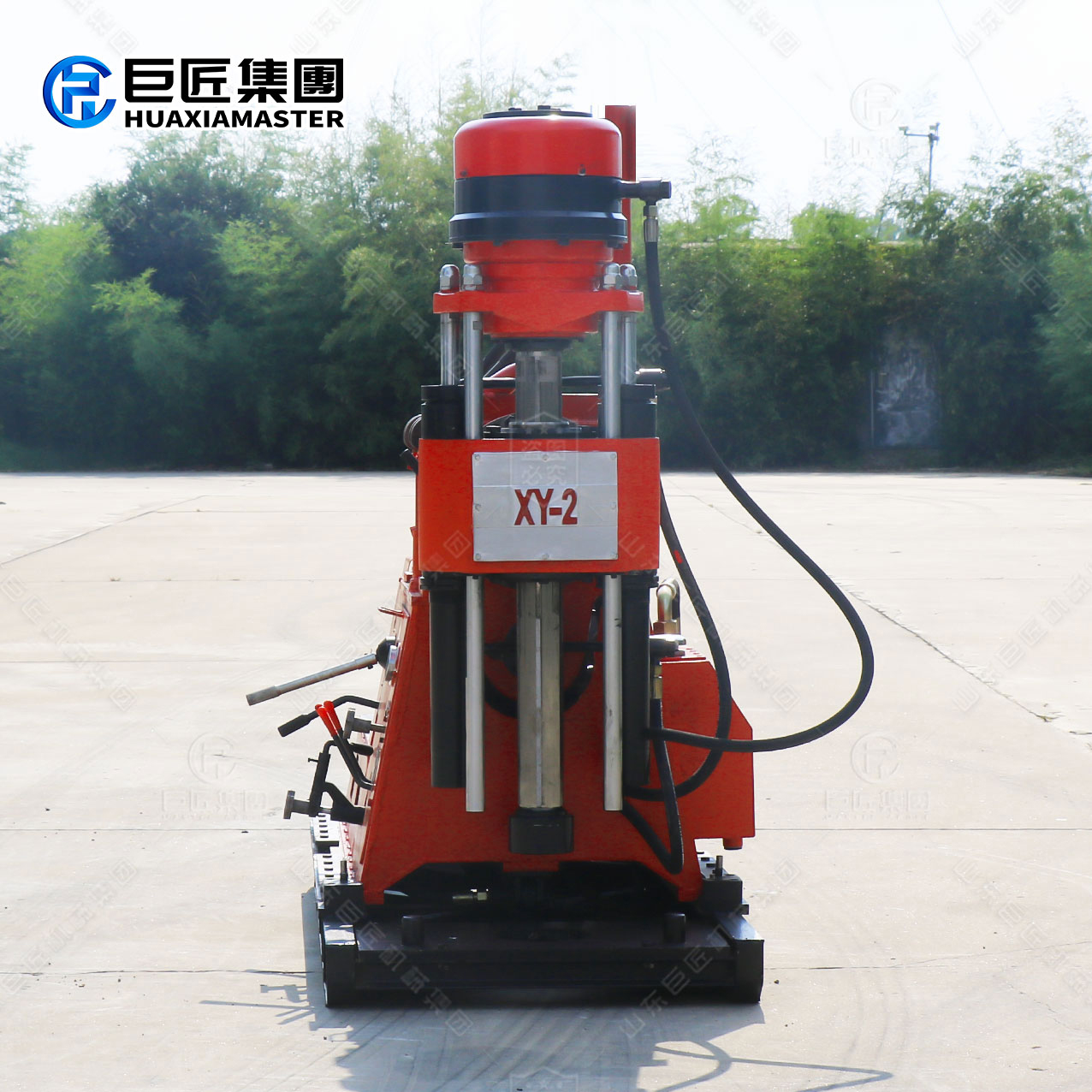

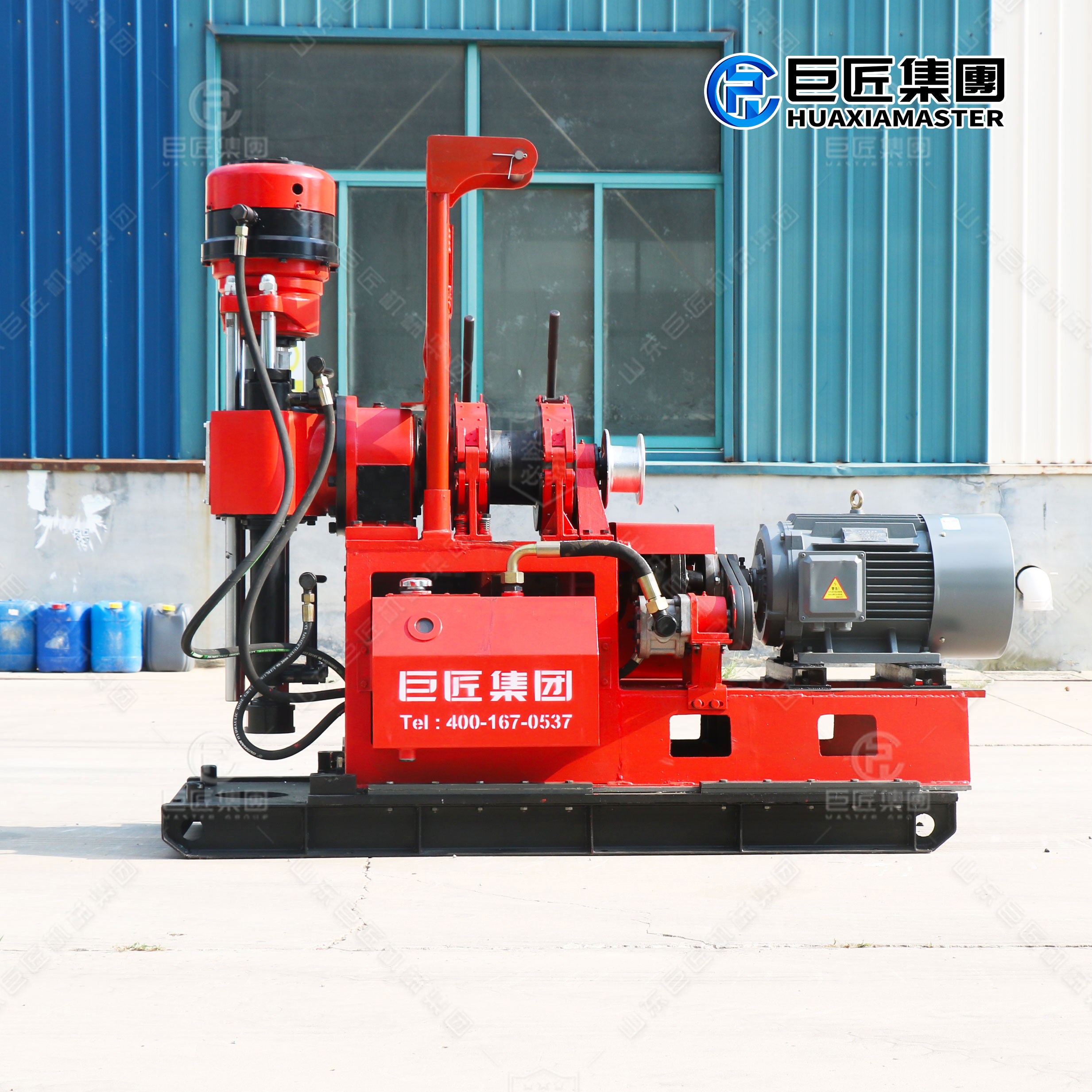

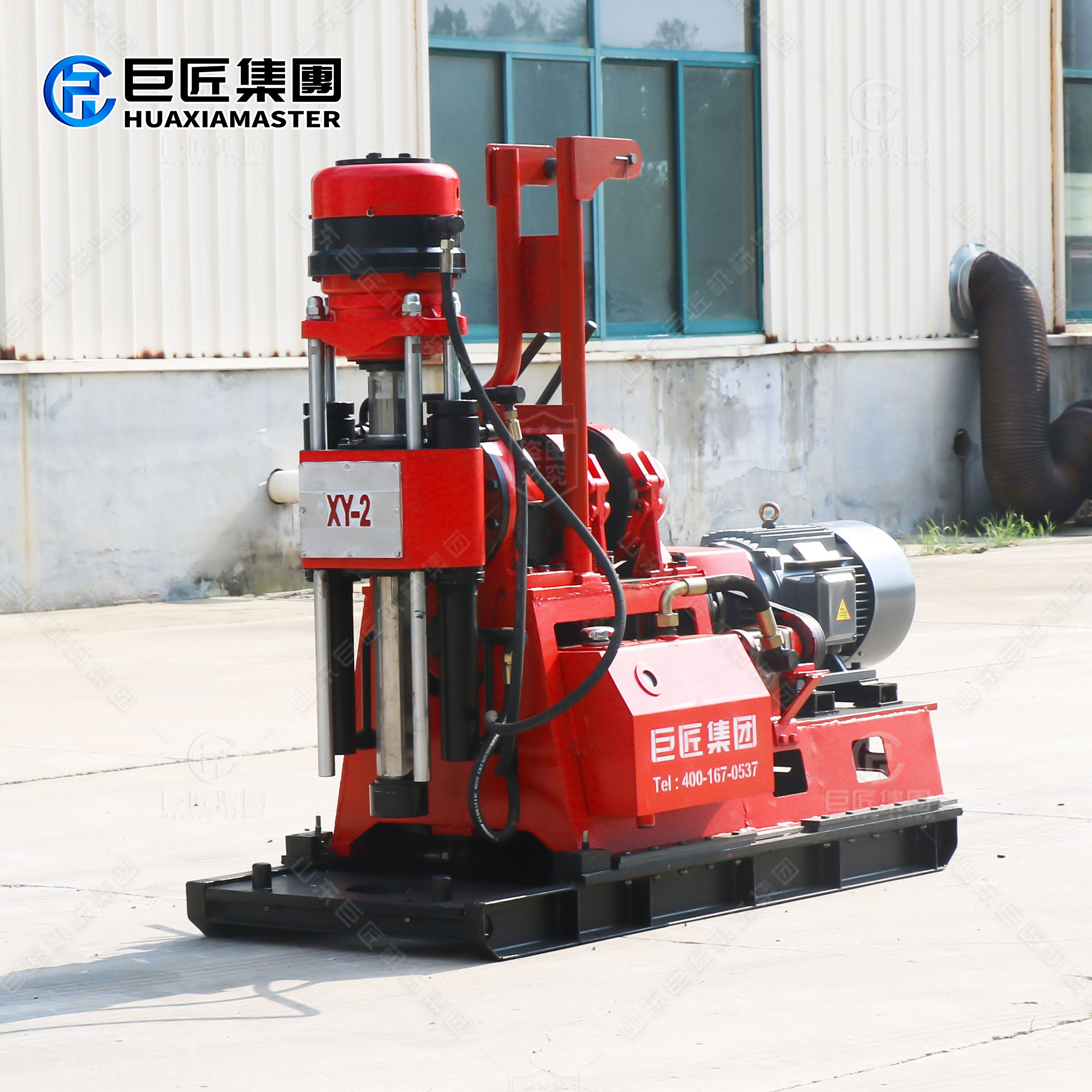

XY-2 Hydraulic Core Drilling Rig
1. Scope of application of XY-2 hydraulic core drilling rig
General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.
2. Main features of XY-2 hydraulic core drilling rig
2.1.The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range.
2.2.With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient.
2.3.The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;
2.4.With a normally closed hydraulic chuck, it is convenient and flexible to operate.
2.5.The vertical shaft through hole has a large diameter, which can be replaced with a large hexagonal active drill rod.
3. Technical parameters of XY-2 hydraulic core drilling rig
| Model | XY-2 |
| Drilling depth | 300m |
| Drilling diameter | 300-75mm |
| Hole diameter | 300mm |
| Final hole diameter | 75mm |
| Drill rod | Φ60 |
| Drilling angle | 90°–65° |
| Vertical axis | |
| Vertical shaft forward speed | 65-1172 r/min |
| Vertical shaft reverse speed | 51-242 r/min |
| Vertical shaft reverse speed | 560mm |
| Vertical shaft lifting capacity | 6000kg |
| Main winch | |
| Single rope lifting speed | 0.5-1.9m/s |
| Wire rope diameter | 12.5mm |
| Single rope lifting capacity | 3000kg |
| Roll diameter | 300mm |
| Roll capacity | 50m |
| Gear pump | |
| Gear oil pump | CBF-F63/25 |
| Front flow pressure | 63L/min 20Mpa |
| After flow pressure | 25L/min 20Mpa |
| Rig power | |
| Diesel engine | 33KW |
| Motor | 22KW |
| Weight&Size | |
| Rig weight | 1480KG |
| Dimensions | 2500*900*1800mm |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
