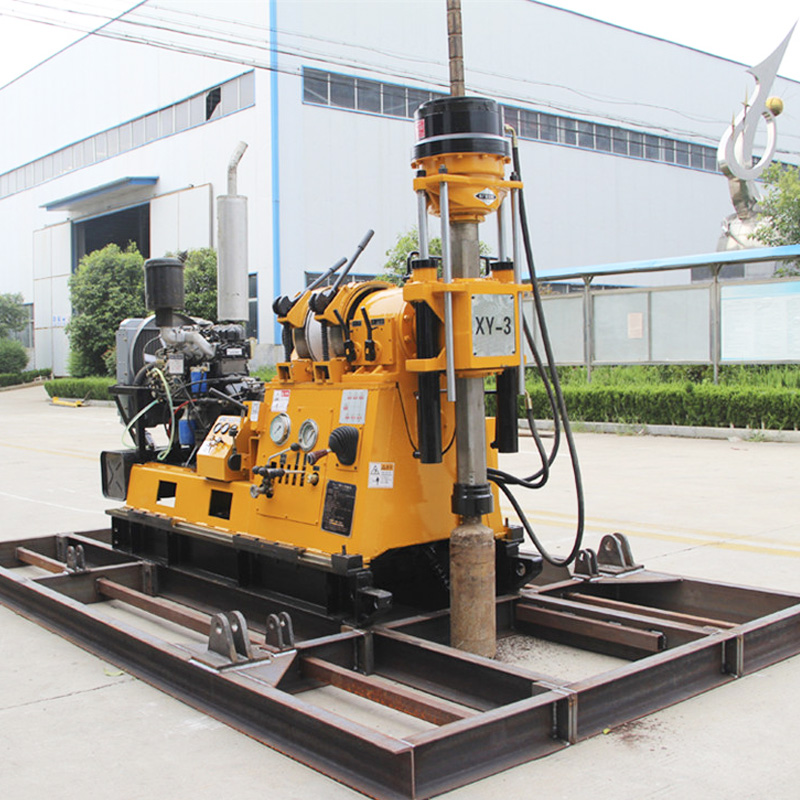

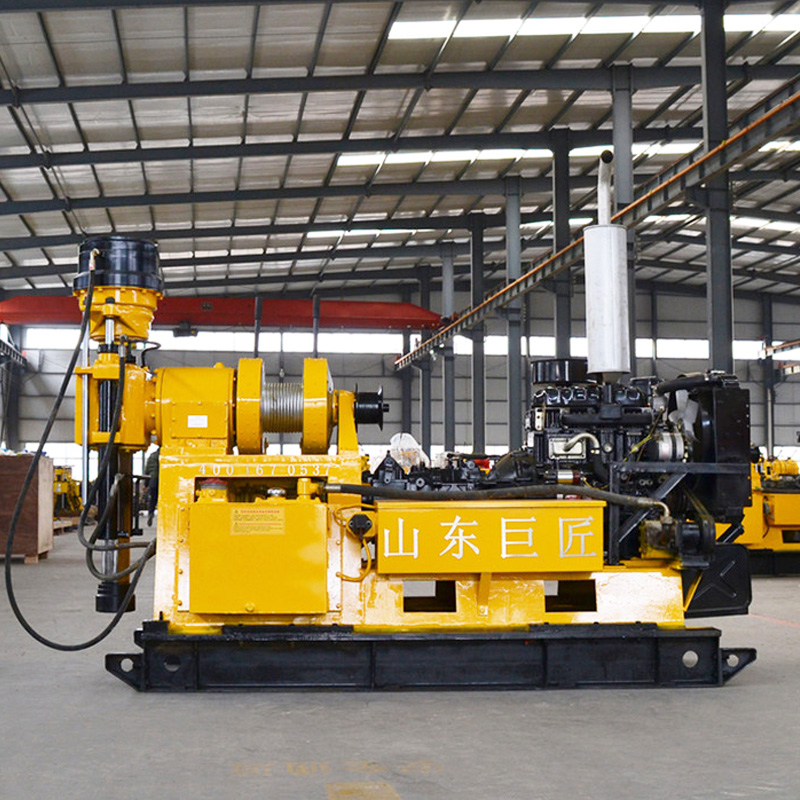

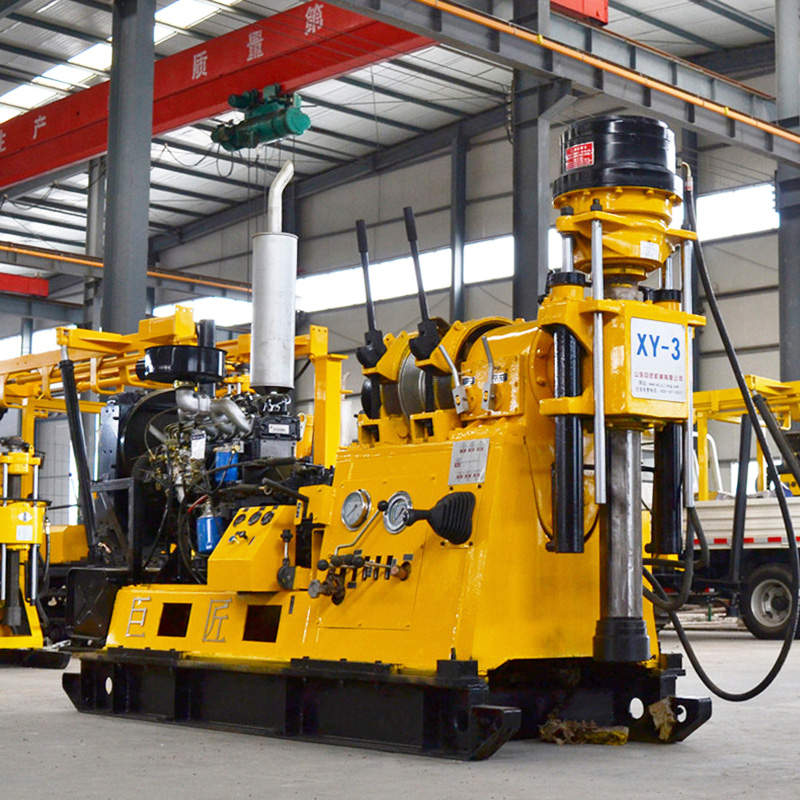

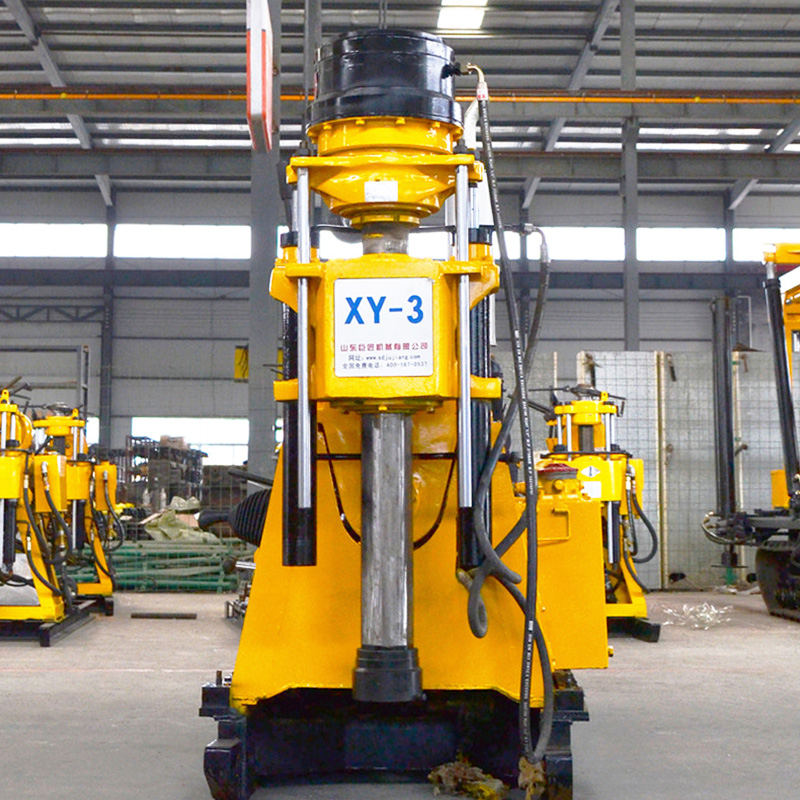

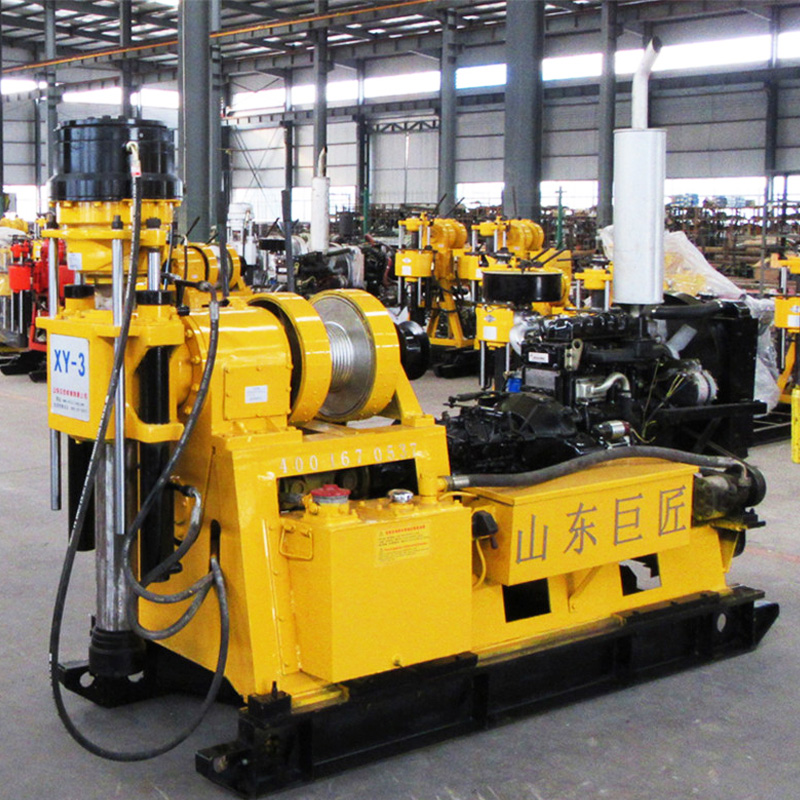

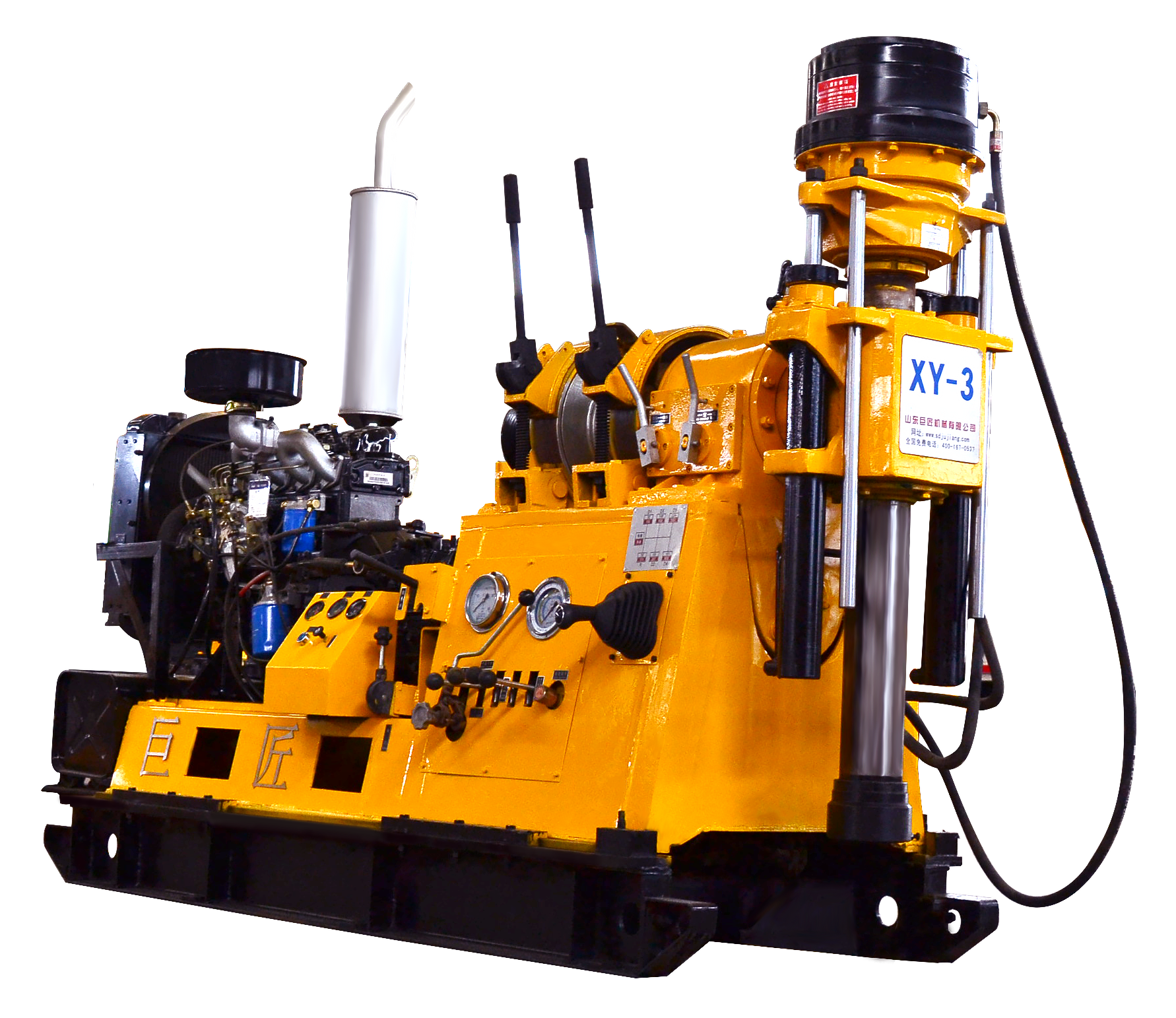

XY-3 Series Hydraulic Core Drilling Rig
1.Introduction to XY-3 Series Hydraulic Core Drilling Rig
XY-3 series hydraulic core drilling rig is a kind of medium-shallow hole vertical spindle rotary drilling rig which can meet the needs of various drilling techniques and drilling in different strata. The main types of XY-3 series drilling rig are XY-3 conventional type, XYX-3 wheel type, XYD-3 crawler type and XYC-3 truck-mounted type.
2.Features of XY-3 Hydraulic Core Drilling Rig
2.1 The drilling rig adopts the automobile gearbox assembly, which has 10-gear forward and 2-gear reverse. The rotational speed of each gear is reasonably designed to meet the requirements of different drilling technologies.
2.2 The hydraulic system realizes the control of feed pressure and speed to meet the needs of drilling in different strata.
2.3 Equipped with hole bottom pressure gauge, easy to grasp the situation in the hole.
2.4 The drilling rig has large output torque and strong bearing capacity, so it is easy to deal with various underground accidents.
3.Parameters of XY-3 Series Hydraulic Core Drilling Rig
| Model | XY-3 | |
| Overall machine parameters | Drillingdepth | 600m |
| Open holedia | 600mm | |
| End holedia | 75mm | |
| Drillpipedia | 60mm | |
| Drillingangle | 75-90° | |
| Matching power | YunneiYN27/39kW | |
| Weight | 1800kg | |
| L*W*H | 2500*900*1800mm | |
| Vertical shaft | Forward speed | 32-1057r/min |
| Reverse speed | 29-137r/min | |
| Stroke | 600mm | |
| Winch | Lifting force | 3000kg |
| Lifting speed | 0.5-1.9m/s | |
| Wire rope dia | 12.5mm | |
| Wireropecapacity | 65m | |
| Derrick | Height | 6.5m |
| Ratedload | 18t | |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
