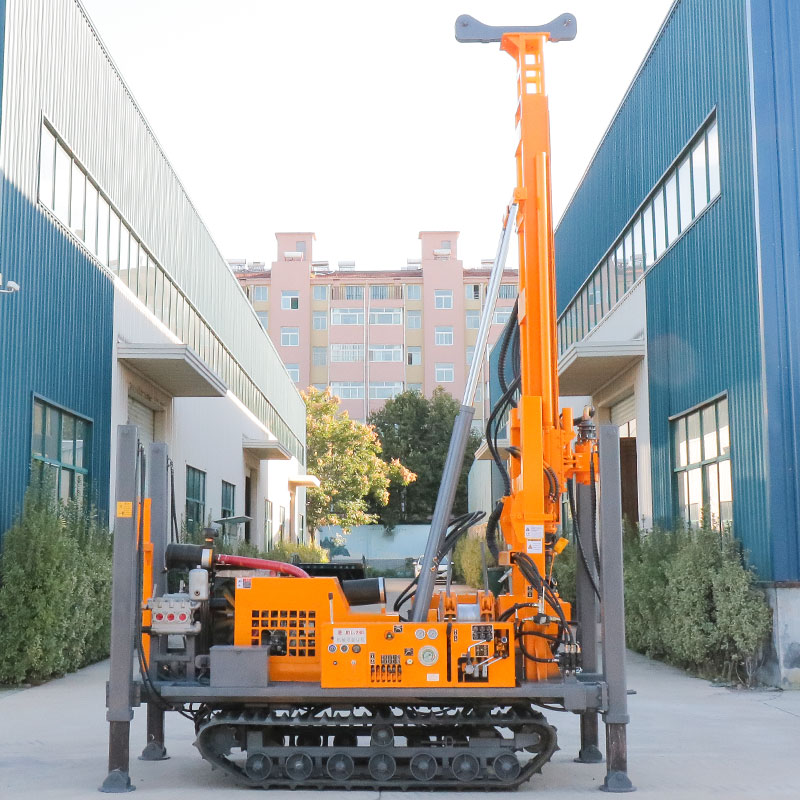

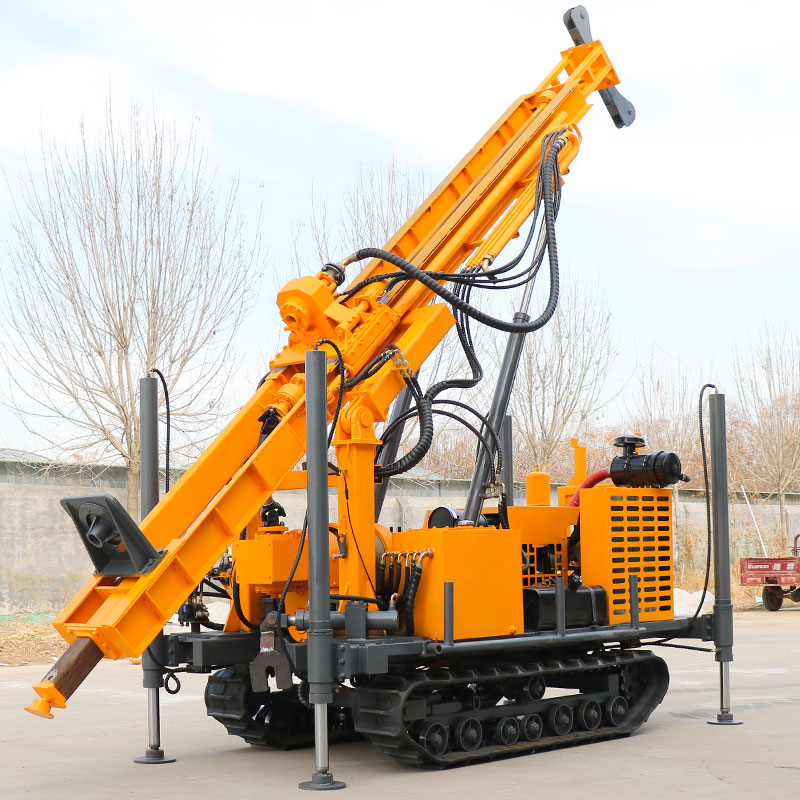

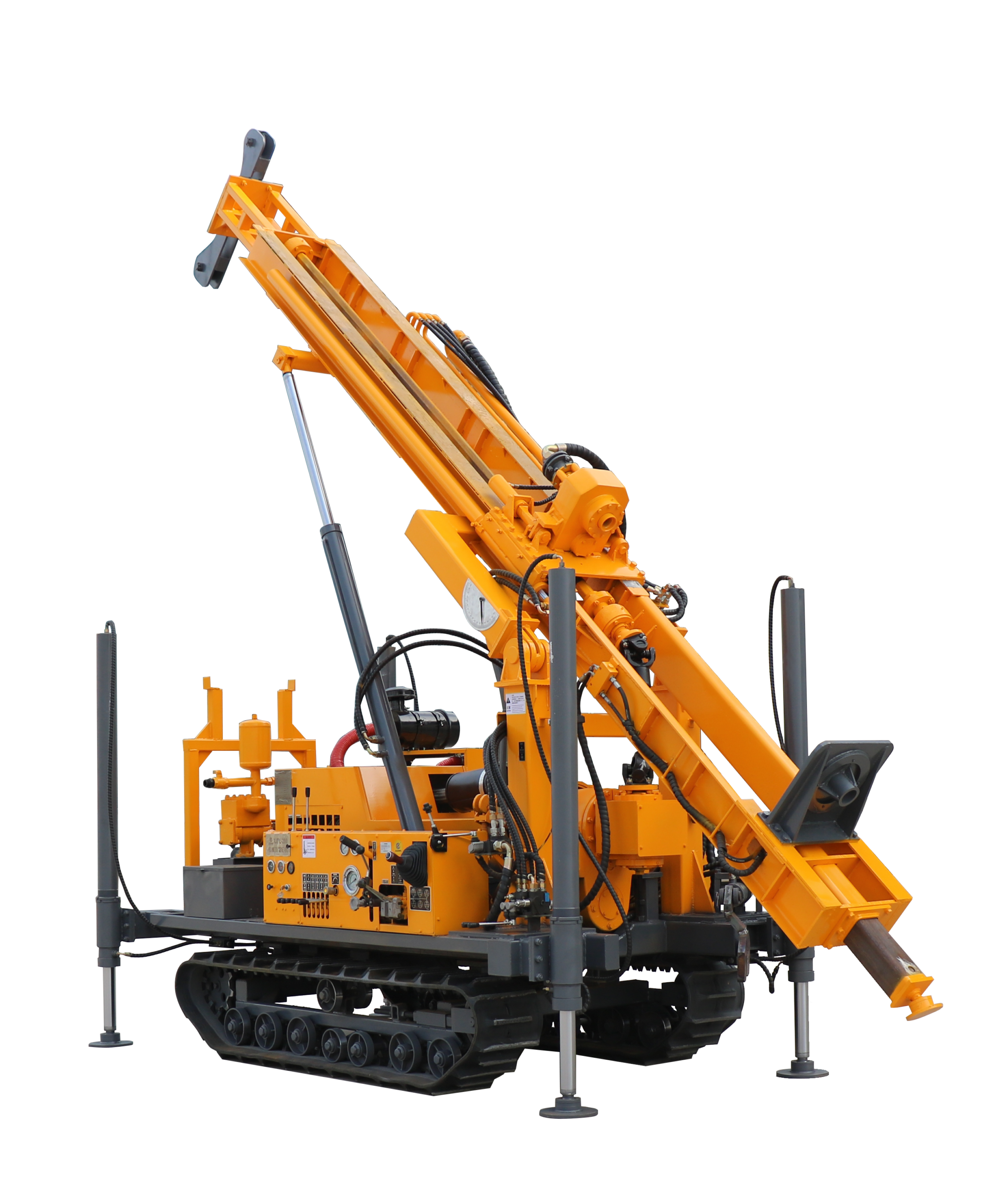

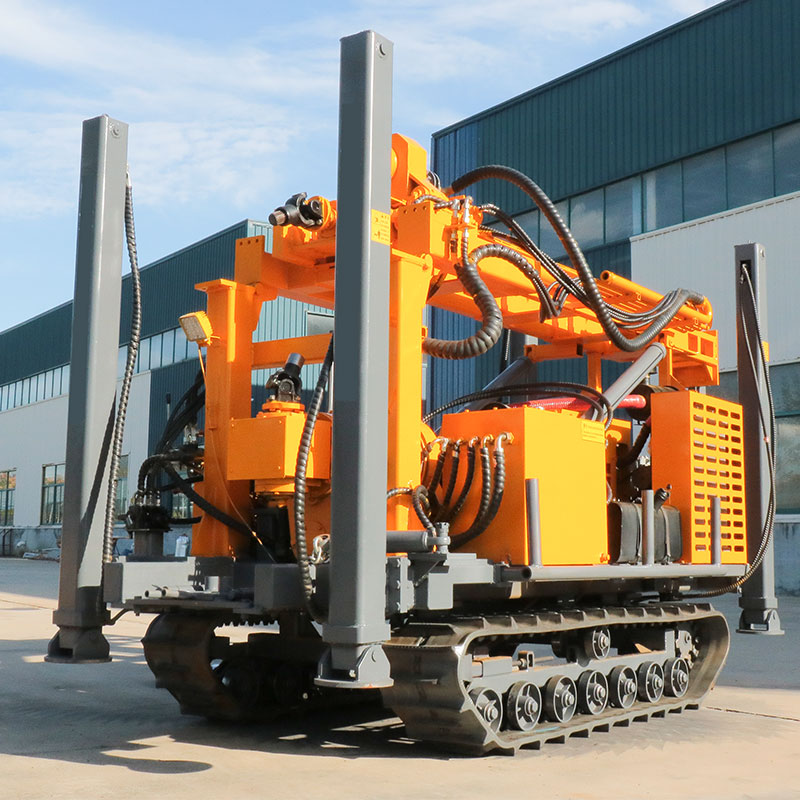

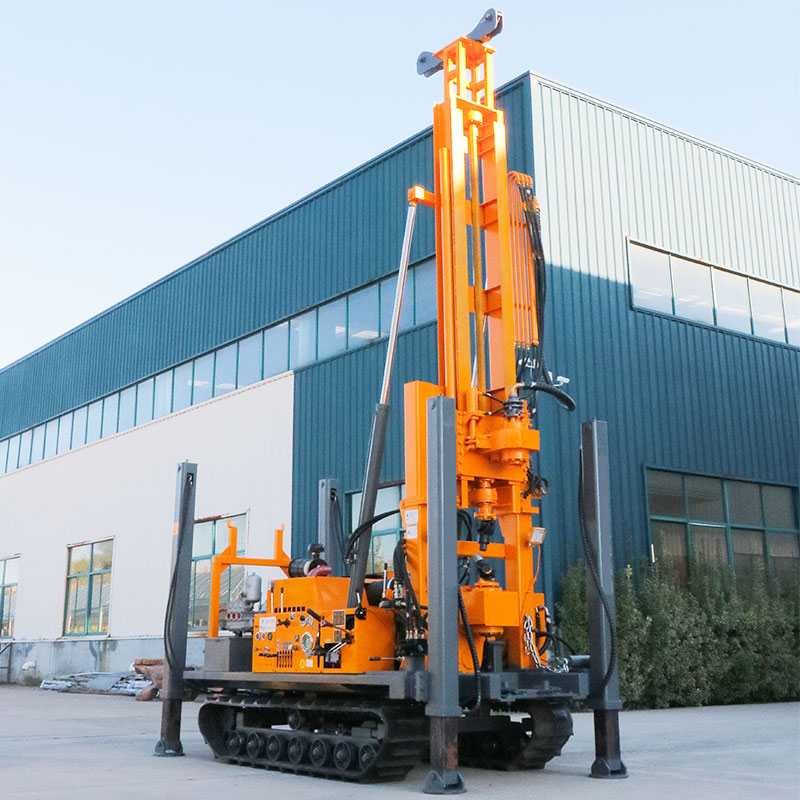

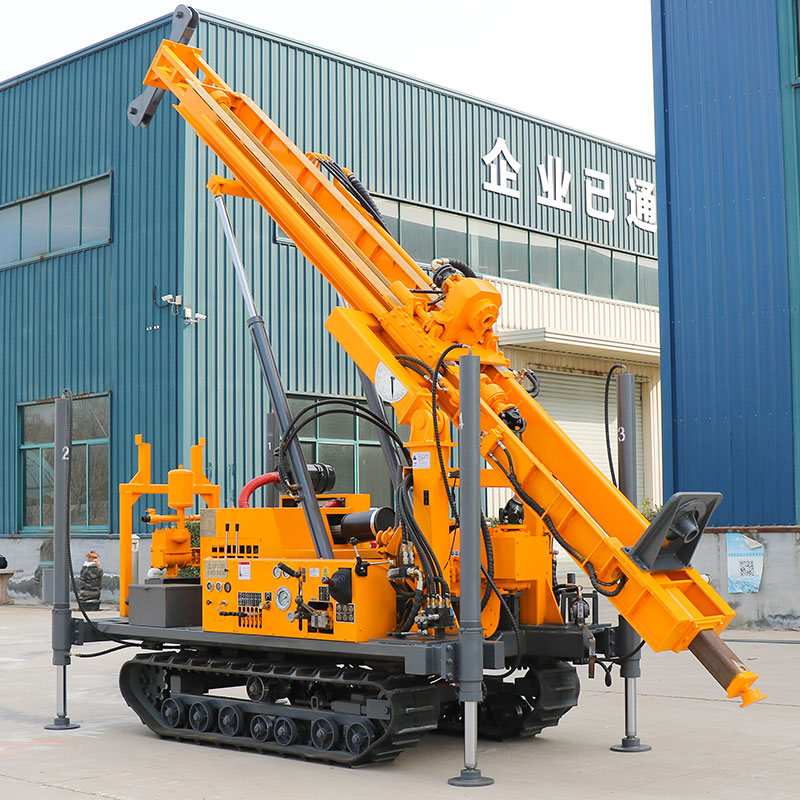

JDL-280 Mechanical Top Drive Core Drilling Rig
-
- JDL-280 Mechanical Top Drive Core Drilling Rig
1.Introduction to JDL-280 Mechanical Top Drive Core Drilling Rig
JDL-280 drilling rig is a mechanical top-drive water well drilling equipment which integrates mud drilling with air drilling. It solves the problems of difficult drilling by air DTH hammer in soil layer air drilling and low drilling efficiency in hard rock, gravel and pebble layer mud drilling. Mechanical top-drive drilling rig can adapt to various strata, and drilling efficiency is efficient and energy-saving.
2.Features of JDL-280 Mechanical Top Drive Core Drilling Rig
2.1 The function integration of mud drilling and air drilling is realized.
2.2 Some functional interfaces are reserved in the hydraulic control system of drilling rig, which can be extended according to the technological requirements of different users.
2.3 The main spindle of the drilling rig adopts mechanical transmission, the transmission efficiency is doubled, and the power consumption is greatly reduced.
2.4 The drilling rig adopts mechanical top-drive power head and long stroke double speed mechanism to improve drilling efficiency and reduce drilling blockage and burning accidents.
2.5 The drilling rig adopts mechanical winch, which has fast lifting speed and is easy to handle
3.Parameters of JDL-280 Mechanical Top Drive Core Drilling Rig
Model JDL-280 Working strata Loose soil and bedrock (hardness F6~20) Drilling method Top drive mechanical rotary hydraulic propulsion，Mud drilling or pneumatic down-the-hole hammer drilling Drilling capacity Drilling diameter 75-350mm Mud drilling 450m Pneumatic Drilling 280m NQ Rope Drilling 500m Power Diesel model YN27 Rated power 42kW Rated speed 2400r/min Power head Rotation speed 33~1120r/min Torque 0-9800N.m Journey 2300mm Feedingsystem Lifting power 100kN Propulsion 50kN Winch Mechanical winch (single rope) 4.5T Drill pipe Drill pipe diameter Φ50/Φ60/Φ76/Φ89 Drill pipe length 2000mm Crawler chassis Walking speed 2km/h Climbing ability 25°~30° Dimension Shipping status 4600*1900*2540mm Working status 3800*2200*5700mm Weight 3500kg Aircompressor Total gas consumption 16~35m³/min Working pressure 10.5~24.6bar Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
